Two standalone, off-platform notebooks built on the VisIQ management API — the kind of cross-cutting, statistical, cryptographic analysis you would deliberately not bake into the product UI. They run against the read-only sandbox showcase org, so you can explore real seeded governance data (or, for the transparency notebook, run with no credentials at all).

Transparency-log verification

Re-derive VisIQ’s transparency log from scratch — recompute every Merkle root, hash-chain link and Ed25519 signature yourself, trusting none of the product’s own flags. Runs with zero credentials (demo mode).

Governance EDA

Exploratory data science over the harness corpus — a business-function atlas, a rule-attribution meta-audit, an egress graph and volume seasonality. Needs a sandbox-reader key.

​
Run them

A fully static JupyterLite build runs the notebooks entirely in your browser via Pyodide (WASM Python) — no install, no server, no account, and for the transparency notebook no credentials. It is live below — give it a few seconds to boot, then choose Run → Run All Cells to re-derive every Merkle root, hash-chain link and Ed25519 signature yourself:
The scientific stack (numpy, pandas, matplotlib, networkx, cryptography) loads on first run; the notebook’s Ed25519 known-answer self-test passes in-browser. Prefer a full-screen tab, or want the exploratory notebook?

Open the verifier full-screen →

The transparency-log verifier in a full JupyterLab tab — the complete Ed25519 verification, still with zero credentials.

Open the governance EDA →

The exploratory notebook — set a sandbox-reader key inside to pull real seeded data.
The embed runs everything client-side (Pyodide/WASM) — nothing you type or run leaves your browser. Nothing to install; or use Run locally below.

​
Get a sandbox-reader key

A read-only sandbox-reader key resolves to the shared exemplar showcase tenant and is clamped read-only — it can never reach a real tenant. Mint one, then:
With a key set, the transparency notebook verifies the real VisIQ ledger and the EDA notebook reads the real seeded decision logs. Without one, the transparency notebook falls back to a cryptographically self-consistent demo ledger.

​
Transparency-log verification

VisIQ commits every governed decision into an append-only transparency log: a Merkle-batched, hash-chained, Ed25519-signed ledger. This notebook ignores every verified flag the API returns and re-derives the guarantees itself with ~40 lines of hashlib + cryptography.

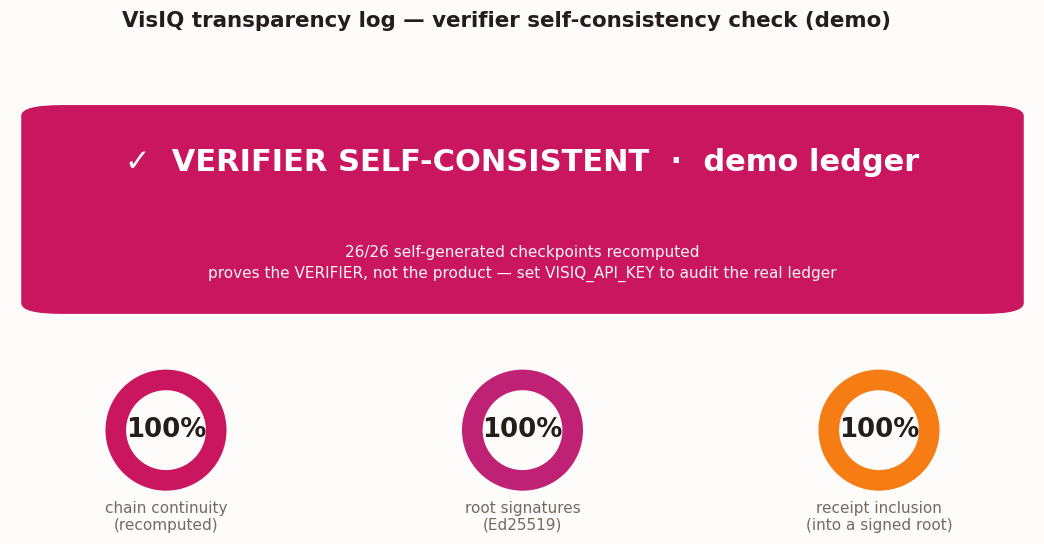

Audit-verdict dashboard

The audit-verdict dashboard — honestly gated on mode. In demo mode it proves the verifier itself; with a key it verifies the real VisIQ ledger.

What it checks, independently of the server:
  • Hash-chain linkage — recompute chain[k] = SHA256(0x02 ‖ chain[k−1] ‖ root[k]), verify prevRoot links and gap-free batchSeq. A single altered or deleted batch is caught.
  • Root signatures — Ed25519-verify each checkpoint’s root under its returned key.
  • Receipt inclusion — replay each retrieval receipt’s Merkle proof and require its root to be one we signature-verified (so a forged “proof” to an unsigned root is rejected).

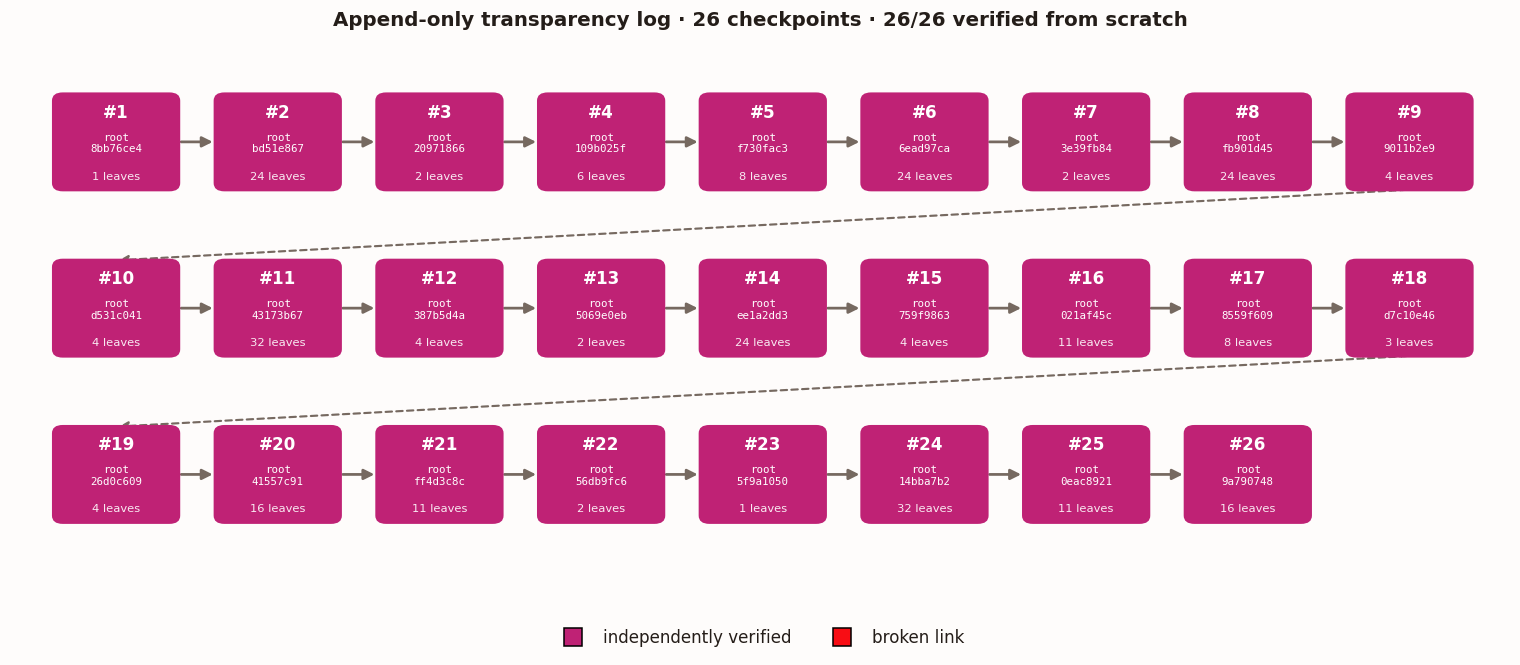

Append-only chain of checkpoints

The append-only ledger, block by block — each checkpoint coloured by its independent verdict.

Honest trust boundary. The notebook is explicit about what a read client cannot verify and records as server attestation, never as proven: the identity of the signing key (pin VisIQ’s published Ed25519 key out-of-band), the RFC-3161 timestamps (the token bytes are never exposed), and the KMS / RECORD-inclusion legs (they need credentials or data a read client lacks). It also ships a known-answer self-test and a tamper demonstration that proves the verifier genuinely checks.

​
Governance exploratory analysis

Exploratory data science over the harness corpus: a business-function → action atlas, a rule-attribution meta-audit (which honestly flags that seeded rule_ids are noise), an egress graph, and STL volume seasonality. It reads the paginated decision logs (/v1/allow/audit-log, /v1/recall/audit-log) plus /allow/agents and /rules, so it needs a sandbox-reader (or management) key — set VISIQ_API_KEY as above.
This is a research notebook over deterministic synthetic sandbox data. Each analysis flags what is genuinely learnable (business-function ↔ action correlation, action-risk ↔ outcome skew, volume seasonality) versus what is noise-by-construction (rule_id, latency_ms, target_app). There are no token/cost/model fields — cost analytics are not viable on this schema.
